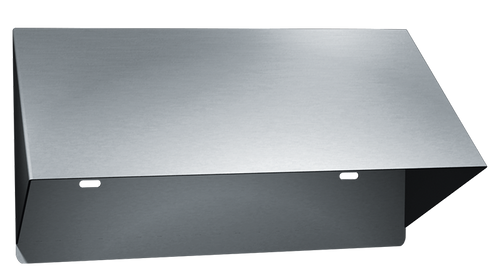

ASI 10-0267 - Vandal-Resistant Hood for Model 0264-1 (Hood Only) - Surface Mounted
NOTE: TOILET PAPER HOLDER NOT INCLUDED, MUST BE ORDERED SEPARATELY
14 gauge satin finish stainless steel for use only with 0264-1.
SPECIFICATION
Surface Mounted Vandal Proof Hood for Double Roll Toilet Tissue Holder (TPH) shall be fabricated of Alloy 18-8 stainless steel, Type 304, No 14 gauge. Structural assembly of body shall be of welded construction and have no exposed fasteners or welded seams. All exposed surfaces shall be No 4 Satin finish and be protected during shipment with a PVC film easily removable after installation.
INSTALLATION
Unit is surface mounted on wall or partition using 1/4" or No 10 Theft Proof Fasteners such as one-way screws (not supplied). Two (2) mounting holes through back are “keyhole” slots for ease in hanging unit on pre-installed screws and two (2) lower mounting holes match up with mounting hole locations in 0264-1, 0264-12, 0264-1A and 0264-1A2. Selected TPH (not supplied) mounts over hole through back plate.
OPERATION
Unit is to be used in conjunction with Toilet Paper Holder Model No’s 0264-1, 0264-12, 0264-1A and 0264-1A2 (not supplied) and prevents application of downward force on TPH.
Warranty: 1 year
