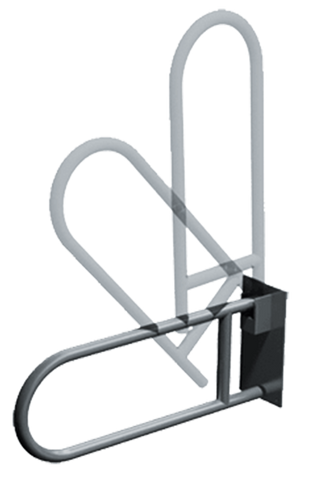

ASI 10-3451 - Exposed Flange (1 1/4" O.D) - Swing Up Grab Bar - Locks
ASI 10-3451-P - Exposed Flange (1 1/4" O.D) Peened - Swing Up Grab Bar - Locks
SPECIFICATION
Swing-Up Grab Bar shall be fabricated of alloy 18-8 stainless steel type 304. Grab bar tubing shall be 18 gauge 1-1/4" diameter [Ø32]. Mounting bracket shall be 7 gauge (3/16" [5] thick) plate with six (6) 5/16" diameter [Ø8] mounting holes provided and shall have 1-1/4" diameter [Ø32] x 3/16" [5] wall tubing hinge riding on solid bar axle with twin torsion-spring counter balance. All exposed surfaces shall be satin finish. Structure shall be of welded construction. All exposed edges and corners shall be eased and burr free. Vertical position gravity lock with manual release shall be provided. Tamper resistant set screw shall be provided to allow owner to lock grab bar in vertical position. Internal mechanisms shall be captive and suitable for heavy duty service. Grab bar shall be operable with only one hand. Grab bar tube shall have a plastic end cap to cushion contact with wall plate in use position.
INSTALLATION
This unit is surface mounted. Installer/construction contractor must provide concealed anchor plate or blocking as specified in construction documents or as required by local building codes prior to wall finishing. Fasten wall plate to concealed anchor or blocking plate with appropriate hardware (by others). See "STRENGTH" section below. Note that concealed mounting plates or anchors and hardware are not supplied with this product and must be specified separately (for anchor plate add line item 3940). Ensure that mounting configuration complies with local building codes. For compliance with 2010 ADA Accessibility Standards, install unit so that top of horizontal bar is between 33" and 36" [838 to 914] above finished floor (AFF) for use by adults. Other heights are appropriate for other age groups at lower levels.
STRENGTH
ASI grab bars are designed to meet and exceed 2010 ADA Accessibility Standards and ANSI A117.1 that fabricated product shall be of adequate strength to support a load of 250 pounds (113.4 kg). Mounting to the wall is a critical part of the system to meet this requirement. To withstand the shear, tension or pull-out, and torsion loads generated by the maximum loading, the fastener system must be adequately sized.
OPERATION
Swing-Up Grab Bar is manually lowered to horizontal position for support and raised for departure or arrival. Gravity lock prevents grab bar from dropping from the vertical position, and must be manually released to lower grab bar. Lock does not affect raising bar from horizontal and automatically locks bar when bar is returned to vertical storage position. Plastic tube cap closes end of bottom tube and provides smooth solid contact with back plate. It is the owner’s responsibility to ensure continued safe operation by performing periodic inspection and effecting any repairs required by adverse environmental conditions.
Warranty: 1 year
